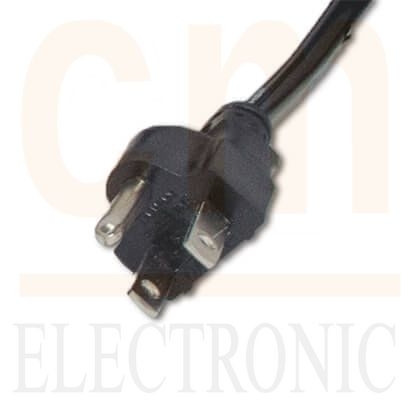

US Power Cord (NEMA 5-15P) Wire Harness
Why Your Equipment Demands a Custom NEMA 5-15P Power Cord Wire Harness
A standard power cord may provide basic AC power, but industrial equipment and mass-produced products require more than simply connecting a plug to a power source. The power cord must integrate safely, reliably, and efficiently with the entire electrical system.
A customized NEMA 5-15P power cord wire harness provides significant advantages in the following applications:
Reliable Power Input for Industrial Equipment
Industrial machinery, automation equipment, and control systems require stable and reliable AC power connections. The NEMA 5-15P provides a standard grounded three-wire connection for Line, Neutral, and Ground.
Based on the electrical requirements, operating environment, and available installation space of your equipment, we can select suitable cable specifications and termination methods to provide a reliable connection from the AC plug to power supplies, switches, terminal blocks, or internal control systems.
Integrated Wiring for Gaming and Electronic Equipment
Gaming machines, amusement equipment, electronic devices, and electrical control cabinets often require more than a simple plug-to-wire power cord.
After entering the equipment, the AC power wiring may need to connect to a power supply, switch, fuse holder, terminal block, or multiple internal components.
Chan Ming can integrate the NEMA 5-15P power cord with Faston terminals, ring terminals, connectors, fuse holders, and other wiring components into a complete ready-to-install harness, reducing secondary processing and assembly time at your production line.
Improved Efficiency and Consistency in Mass Production
Cutting, stripping, crimping, and wiring power cables during final equipment assembly requires additional labor and may result in wiring inconsistencies.
A pre-assembled and tested power cord wire harness can be manufactured according to specified dimensions, branch locations, terminal orientations, and installation requirements. This improves assembly consistency while reducing wiring errors, rework, and production time.
Chan Ming's Custom US Power Cord Solution: Four Advantages Beyond a Standard Power Cord
1. Fully Customized for Your Equipment
Every power cord wire harness can be manufactured according to your drawing, sample, or application requirements.
Customization options include:
- Cable type and wire gauge
- Cable length
- NEMA 5-15P plug configuration
- Stripped, tinned, or terminated wire ends
- Faston, ring, fork, and other terminals
- Molex, JST, TE, Hirose and other connectors
- Fuse holders, switches, and additional wiring components
- Sleeves, heat-shrink tubing, cable ties, wire markers, and labels
From a simple NEMA 5-15P power cord assembly to a complete equipment power distribution harness, we can customize the configuration according to your application.
2. Electrical Safety and Consistent Quality
The NEMA 5-15P is a standard 15A / 125V grounded plug configuration commonly used in North America. The actual electrical rating of a completed wire harness depends on the cable gauge, cable type, terminals, connectors, and overall harness design.
Depending on your target market and product requirements, we can use power cord materials that comply with applicable UL, CSA, and other safety requirements.
Combined with our ISO 9001:2015 quality management system and established wire harness manufacturing processes, every assembly is produced with consistent crimping, continuity, and workmanship control.
3. Reliable Termination and Mechanical Durability
Power cords may be subjected to repeated bending, pulling, vibration, and mechanical stress throughout the service life of the equipment.
Proper strain relief, terminal crimping, cable protection and harness retention are therefore essential to long-term reliability.
According to your application requirements, we can incorporate suitable strain-relief designs, heat-shrink tubing, protective sleeves and cable retention methods to reduce the possibility of loose connections or electrical failures caused by long-term mechanical stress.
4. One-Stop Power Harness Integration
An effective power harness design is more than selecting the right AC power cord. It should consider how power is distributed throughout the entire equipment.
With extensive experience in wires, terminals, connectors, and custom cable assemblies, Chan Ming can integrate the NEMA 5-15P power cord with switches, fuse holders, power supplies, terminal blocks, and internal connectors into one complete wire harness assembly.
This allows customers to reduce the number of suppliers, simplify internal assembly processes, and receive a ready-to-install wiring solution.
For industrial equipment, gaming machines, automation systems, and electronic products, reliable power connectivity is the foundation of stable system performance.
Chan Ming Electronic provides more than a standard US power cord. We develop complete NEMA 5-15P Power Cord Wire Harness solutions tailored to your equipment, from cable selection and terminal crimping to connector assembly and complete harness integration.
Send us your drawing, BOM, sample or basic specifications today, and let our team develop a customized US power cord wire harness solution for your application.
