Custom UAV Signal Connector Harness Solutions

Precision Signal Transmission — Every Millisecond Counts

During every second of high-speed UAV flight, signal transmission between the flight controller, sensors, and modules leaves absolutely no room for error. A single unstable connection can cause loss of control, a crash, or complete mission failure. That's why professional UAV manufacturers trust CHAN MING to support critical components like the UAV Connector Harness.

We deeply understand the UAV industry's extreme demands for lightweight design, EMI resistance, and high reliability. The partner you need doesn't just supply products — we deliver the promise of absolute stability in flight.

Inquiry

Engineered for the Harsh Environment of Aerial Vehicles

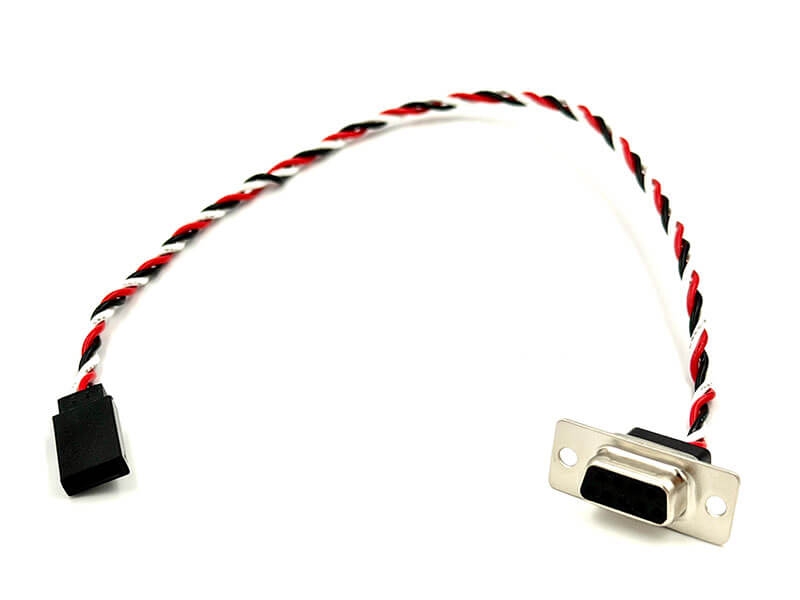

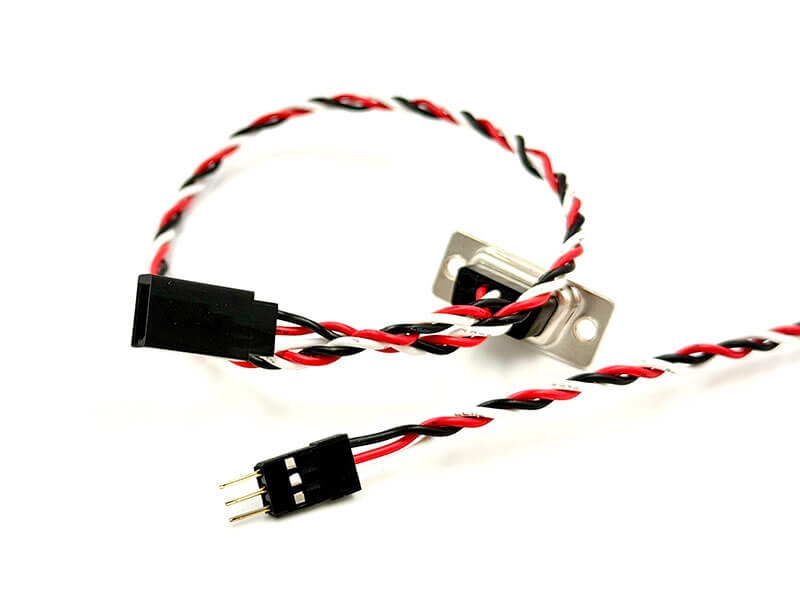

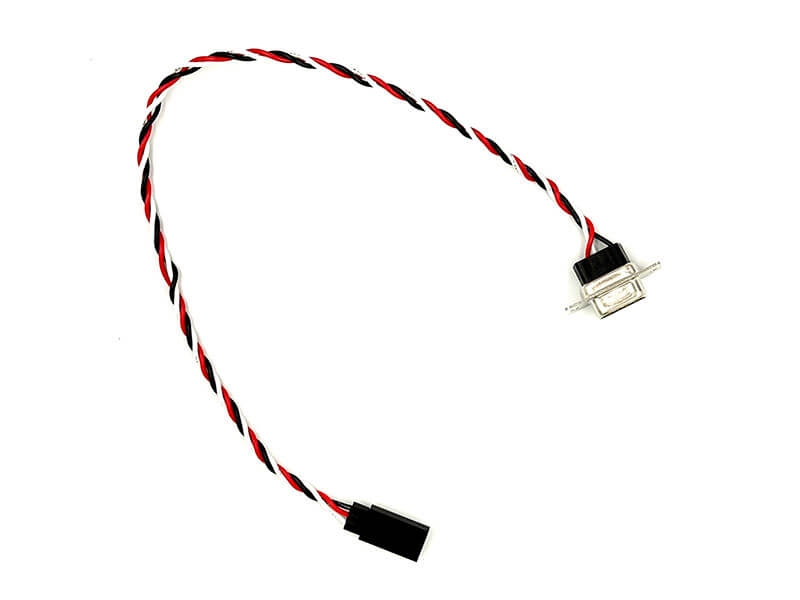

Since 1995, Chan Ming has specialized in custom wiring assembly. Our UAV connector harnesses feature 2-pin / 3-pin compact signal connectors, paired with twisted-pair construction and ultra-fine lightweight conductors (AWG26–30), specifically designed to meet the strict weight and space requirements of unmanned aerial vehicles. Each harness is built to perform reliably under high-frequency vibration and electromagnetic interference.

They are the ideal choice for connecting critical UAV modules, including:

  • Flight Controller Systems
  • GPS Modules & IMU Sensors
  • Camera / Video Transmission Equipment
  • Power Distribution Boards & Communication Modules

【Product Structure — Detailed Specifications】

1. Connector Type

Utilizing 2-pin / 3-pin compact signal connectors, commonly found in flight controllers, sensors, LED modules, and communication modules. The male-female mating design enables quick module replacement and easy maintenance. Gold-plated terminals enhance conductivity and oxidation resistance, ensuring long-term contact quality without degradation.

2. Wire Construction

Multi-core configuration (2–3 conductors) with clearly defined wire assignments: Red for power positive (VCC), Black for ground (GND), and White for signal (Signal). The Twisted Pair design effectively reduces electromagnetic interference (EMI) and improves signal integrity — particularly suited for PWM, UART, and I2C communication protocols. Ultra-fine conductors (AWG26–30) fully comply with the strict weight and space constraints of UAV platforms.

3. Panel Mount Structure

The metal Panel Mount bracket can be secured to the housing or structural frame, providing a stable external interface. Combined with a Strain Relief design, it effectively prevents wire fatigue and breakage caused by prolonged vibration or pulling forces, significantly extending product service life.

4. Manufacturing Process Highlights

Chan Ming applies strict control over five critical manufacturing processes for every UAV harness:

  • Twist Pitch Control: Consistent twist pitch maintained to ensure stable EMI suppression performance
  • Terminal Crimping Quality: Precision crimping machines used to guarantee reliable pull force and electrical continuity
  • Shell Positioning: Foolproof design (correct pin alignment, eliminating reverse insertion risk)
  • Wire Flexibility: High-strand copper conductors selected to prevent fatigue fracture under prolonged vibration
  • Full Inspection & Testing: Every harness passes Continuity Testing, Short Circuit Testing, and Pull Force Testing

Why Choose Chan Ming as Your Wire Harness Manufacturer?

We build partnerships on three core principles: Premium Quality | Fast Production | Deep Customization

Premium Quality (ISO & UL Dual Certification): As a manufacturer certified to ISO 9001:2015 and UL (File No. E318480), we apply the most rigorous quality controls to every UAV harness, ensuring every connection point remains secure and reliable throughout flight operations.

Precision Manufacturing & Customization: Customization is at the core of Chan Ming. Whether you require specific twist pitch control, gold-plated terminal crimping, foolproof shell positioning, or custom wire lengths tailored to your airframe layout, our expert team delivers with precision craftsmanship and exceptional production speed.

Cross-Industry Application Expertise: We are not only specialists in UAV and aerospace wiring — our experience spans industrial, medical, and consumer electronics applications. This cross-domain knowledge allows us to solve complex wiring challenges more efficiently and anticipate potential issues before they arise.

Product Advantage Summary

  • Lightweight Design: Ultra-fine high-strand conductors meet the strict weight limitations of aerial vehicles
  • Strong EMI Resistance: Twisted-pair construction effectively shields against electromagnetic interference for clean, stable signal transmission
  • High-Reliability Connection: Precision terminal crimping combined with foolproof design eliminates poor contact and mis-insertion risks
  • Easy Installation & Maintenance: Modular connector design supports quick replacement, reducing maintenance time and cost

Your Most Reliable UAV Wiring Partner

Partner with Chan Ming to ensure your supply chain delivers on quality, speed, and customization — meeting every connectivity demand of your high-performance aerial platforms.
