M9 Rugged Waterproof Connector
Key Features
Compact M9 Circular Metal Connector
The connector uses a compact M9 threaded circular interface, making it suitable for precision equipment and space-limited installations.
The metal housing provides:
- Strong mechanical protection
- Improved wear resistance
- Stable threaded connection
- Enhanced durability in industrial environments
- Better resistance to signal interference when paired with suitable cable design
This makes the product ideal for automation equipment, sensor modules, machine panels, and compact control systems.
3-Pin Male Configuration for Sensor Applications
This M9 waterproof connector is available with a 3-pin male contact configuration, commonly used for three-wire industrial sensors and proximity switches.
Typical three-wire sensor wiring includes:
- V+ power input
- GND power return
- Signal output
This configuration is suitable for proximity sensing, position detection, limit detection, cylinder position monitoring, and automated machine signal feedback.

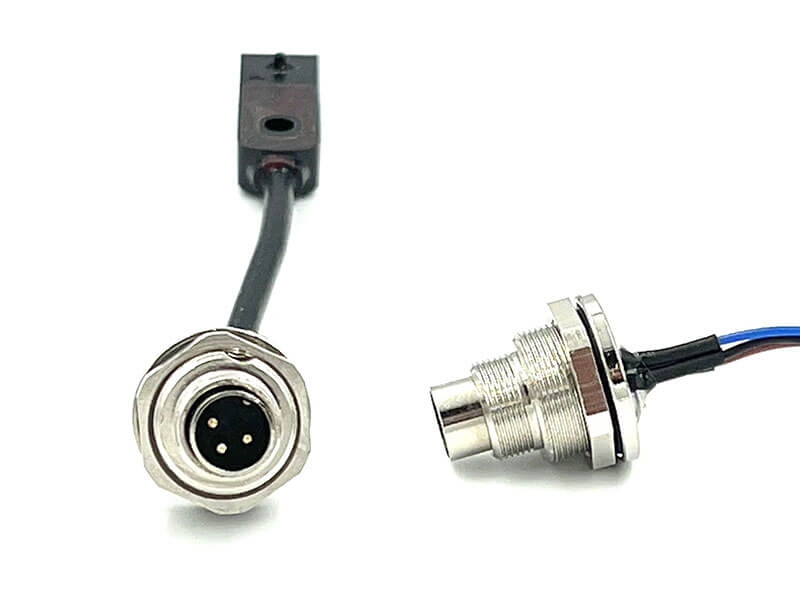

Rear-Mount Panel Installation
The rear-mount panel connector design allows the connector to be inserted from the inside of the equipment panel and secured from the outside using a locking nut.
This design provides several advantages:
- Secure panel installation
- Reduced risk of the connector being pushed back into the housing
- Cleaner external panel layout
- Better protection at the mounting point
- Easier maintenance and replacement
- Suitable for control cabinets and machine panels
When used with an O-ring or sealing washer, the panel-mount area can support waterproof and dust-resistant installation requirements.
Overmolded Waterproof Construction
The connector-to-cable transition can be manufactured with an overmolded sealing structure to help prevent moisture, dust, oil mist, or cutting fluid from entering the cable assembly.
When properly installed and mated with compatible components, the assembly can be designed to support demanding industrial environments, including IP67 or IP68 applications, depending on final specifications.
Typical operating environments include:
- Machine tool areas
- Automated production lines
- Semiconductor equipment
- Packaging machinery
- Robotic systems
- Sensor-dense equipment zones

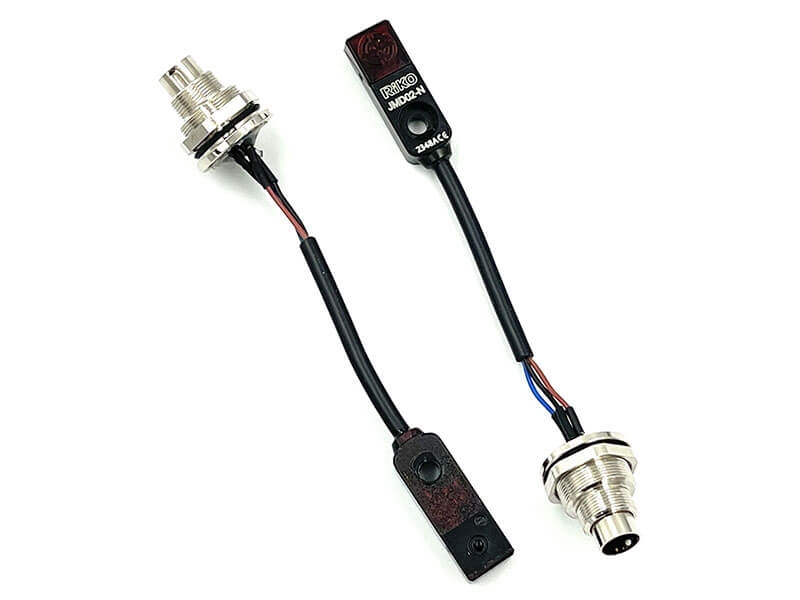

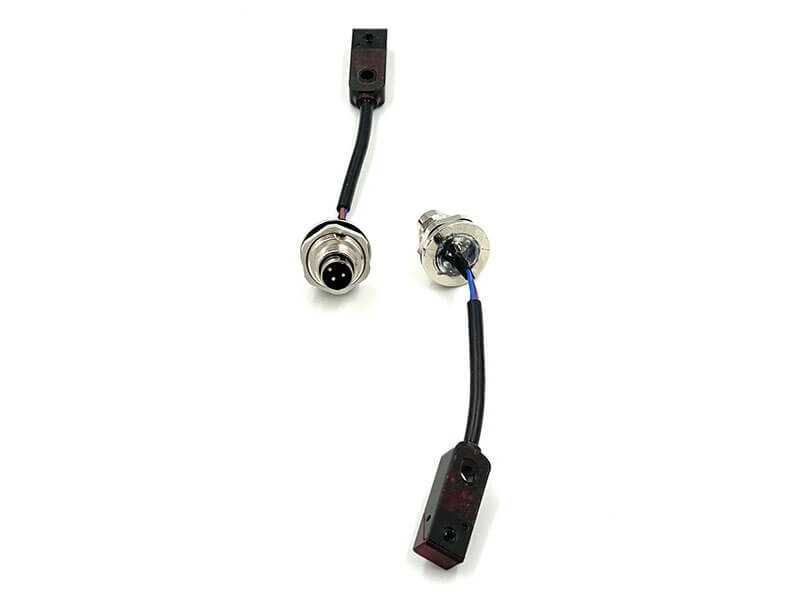

Integrated Proximity Sensor Option
This M9 waterproof connector can be integrated directly with a proximity sensor to create a modular sensor cable assembly.
When a sensor is damaged due to impact, wear, or long-term operation, maintenance personnel can simply disconnect the M9 threaded connector and replace the assembly without rewiring inside the control cabinet.
This helps improve:
- Maintenance efficiency
- Cable management
- Equipment serviceability
- Field replacement speed
- Overall system reliability
Product Specifications
| Item | Description |
| Product Name | M9 Rugged Waterproof Connector, Rear-Mount Panel Type |
| Product Category | Industrial Connector / Waterproof Panel Connector / Sensor Cable Assembly |
| Connector Type | M9 circular threaded connector |
| Mounting Style | Rear-mount panel installation |
| Housing Material | Metal housing |
| Contact Configuration | 3-pin male, customizable upon request |
| Locking Method | Threaded screw-locking design |
| Protection Design | Waterproof, dust-resistant, oil-resistant design available |
| Protection Rating | Can be designed for IP67 / IP68 applications depending on final specification |
| Compatible Components | Proximity sensors, industrial sensors, control modules, equipment panels |
| Applications | Automation equipment, PLC systems, machine tools, robotics, semiconductor equipment, packaging machines |
| Customization Options | Cable length, pin count, connector style, sensor type, wire specification, labeling, terminals, and assembly method |
Advantages of Rear-Mount Design
Secure Panel Fixing
The rear-mount structure allows the connector to be installed from inside the equipment housing and fixed to the panel with a locking nut.
This helps prevent the connector from becoming loose or being pushed back into the housing when external cables are connected, disconnected, pulled, or exposed to vibration.
Clean and Organized Panel Layout
M9 rear-mount connectors help create a neat external interface for machine panels, control cabinets, sensor modules, and industrial equipment housings.
A clean connector layout improves product appearance and allows maintenance teams to identify, inspect, and replace cable assemblies more efficiently.
Quick Disconnect for Lower Downtime
When integrated with a proximity sensor or industrial sensor, the M9 connector assembly supports modular field replacement.
Maintenance teams can disconnect the sensor assembly at the M9 interface instead of opening the control cabinet and removing terminal wiring. This helps reduce machine downtime and service complexity.
Proximity Sensor Integration
This product can be integrated with a proximity switch for position sensing, metal object detection, motion confirmation, and automated control signal feedback.
Common Applications Include:
- Cylinder position detection
- Linear guide position sensing
- End-of-stroke confirmation
- Metal part detection
- Automated production line signal feedback
- Robotic arm position detection
- Packaging machine motion control
- Machine tool positioning and safety detection
Standard three-wire proximity sensor cable colors often include brown, blue, and black, typically used for power positive, power negative, and signal output. Wiring can be customized according to customer equipment requirements.
Typical Applications
| Application Area | Description |
| Industrial Automation Equipment | Suitable for automated production lines, inspection equipment, assembly machines, and control modules |
| Proximity Sensor Cable Assemblies | Used for three-wire proximity sensor signal transmission and quick replacement |
| PLC Control Systems | Connects field sensors to PLC I/O modules |
| Machine Tools | Suitable for CNC equipment, machining areas, coolant environments, and machine panels |
| Robotics | Used for joint position detection, end-effector sensing, and compact-space wiring |
| Semiconductor Equipment | Supports precision equipment sensor connections and modular maintenance |
| Packaging Machinery | Used for position detection, motion control, and automation feedback |
| Control Cabinets and Equipment Panels | Suitable for panel mounting, external connections, and signal interface design |
Custom Cable Assembly Services
Chang Ming Electronics provides custom M9 rear-mount waterproof connector and sensor cable assembly services based on customer samples, drawings, or specifications.
Available Customization Options
- M9 connector specifications
- Rear-mount panel structure
- Male or female connector configuration
- 3-pin or other pin configurations
- Cable length
- Wire gauge and cable material
- Proximity sensor type
- Sensor housing shape and mounting-hole design
- Terminal processing
- Soldering and tinning
- Labeling and wire identification
- Waterproof overmolding
- Protective sleeving and cable bundling
- Prototype and mass production support
Chang Ming can support customers from sample review and material recommendation to wire processing, connector assembly, and final inspection.
Quality Inspection
Depending on product requirements, Chang Ming Electronics can provide the following inspection processes:
- Visual inspection
- Cable length verification
- Contact and pin configuration check
- Continuity testing
- Signal testing
- Insulation check
- Pull-force testing
- Assembly verification
- Waterproof structure review
- Sample and drawing comparison
These quality control steps help reduce assembly errors, unstable signal transmission, field maintenance issues, and mass production risks.
Why Choose Chang Ming Electronics?
Chang Ming Electronics has years of experience in industrial wire harness manufacturing, connector assembly, and custom cable processing.
We help automation equipment manufacturers, sensor suppliers, control system integrators, and electronic equipment manufacturers develop reliable cable assembly solutions for demanding industrial applications.
Chang Ming Can Help Customers:
- Convert samples or drawings into manufacturable cable assemblies
- Evaluate connector and cable compatibility
- Plan suitable mounting structures for equipment panels
- Integrate proximity sensors with waterproof connectors
- Simplify field wiring and maintenance
- Support prototyping, low-volume production, and mass production
For industrial equipment requiring waterproof performance, dust protection, vibration resistance, serviceability, and stable signal transmission, the M9 rear-mount waterproof connector assembly offers a compact and reliable connection solution.
FAQ
What is an M9 rear-mount waterproof connector used for?
It is commonly used in industrial automation equipment, PLC systems, machine tools, robotic equipment, semiconductor equipment, packaging machinery, control cabinets, and sensor modules.
What does rear-mount installation mean?
Rear-mount installation means the connector is inserted from the inside of the equipment panel or housing and secured from the outside with a locking nut. This helps improve installation stability and reduces the risk of the connector being pushed back into the housing.
Can this connector be integrated with a proximity sensor?
Yes. This M9 waterproof connector can be integrated with a proximity sensor to create a modular sensor cable assembly for position detection, metal object sensing, and automation control applications.
Is the connector waterproof?
The connector can be designed for waterproof and dust-resistant applications. When properly installed and mated with compatible components, it may support IP67 or IP68 applications depending on final product specifications and installation conditions.
Can Chang Ming customize the cable length, pin count, and connector type?
Yes. Chang Ming can customize cable length, pin count, male or female connector configuration, wire specifications, proximity sensor type, labeling, terminals, and assembly methods.
Why integrate a proximity sensor with an M9 waterproof connector?
An integrated design improves modular maintenance. When the sensor needs replacement, technicians can disconnect the M9 connector and replace the assembly without rewiring inside the control cabinet, helping reduce downtime.
