Solar Wire Harness

Solar Wire Harness
Solar Wire Harness
Solar Wire Harness

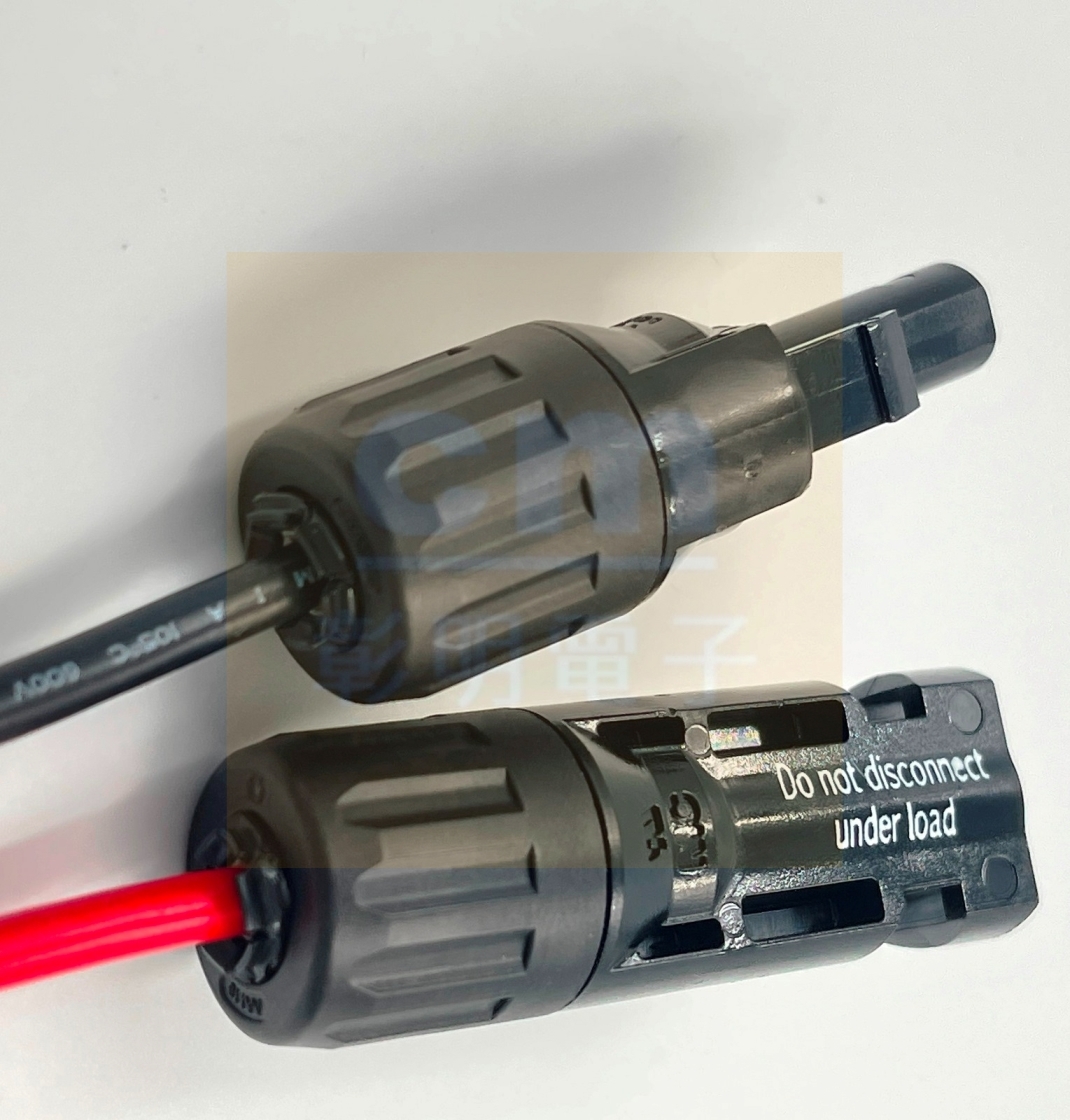

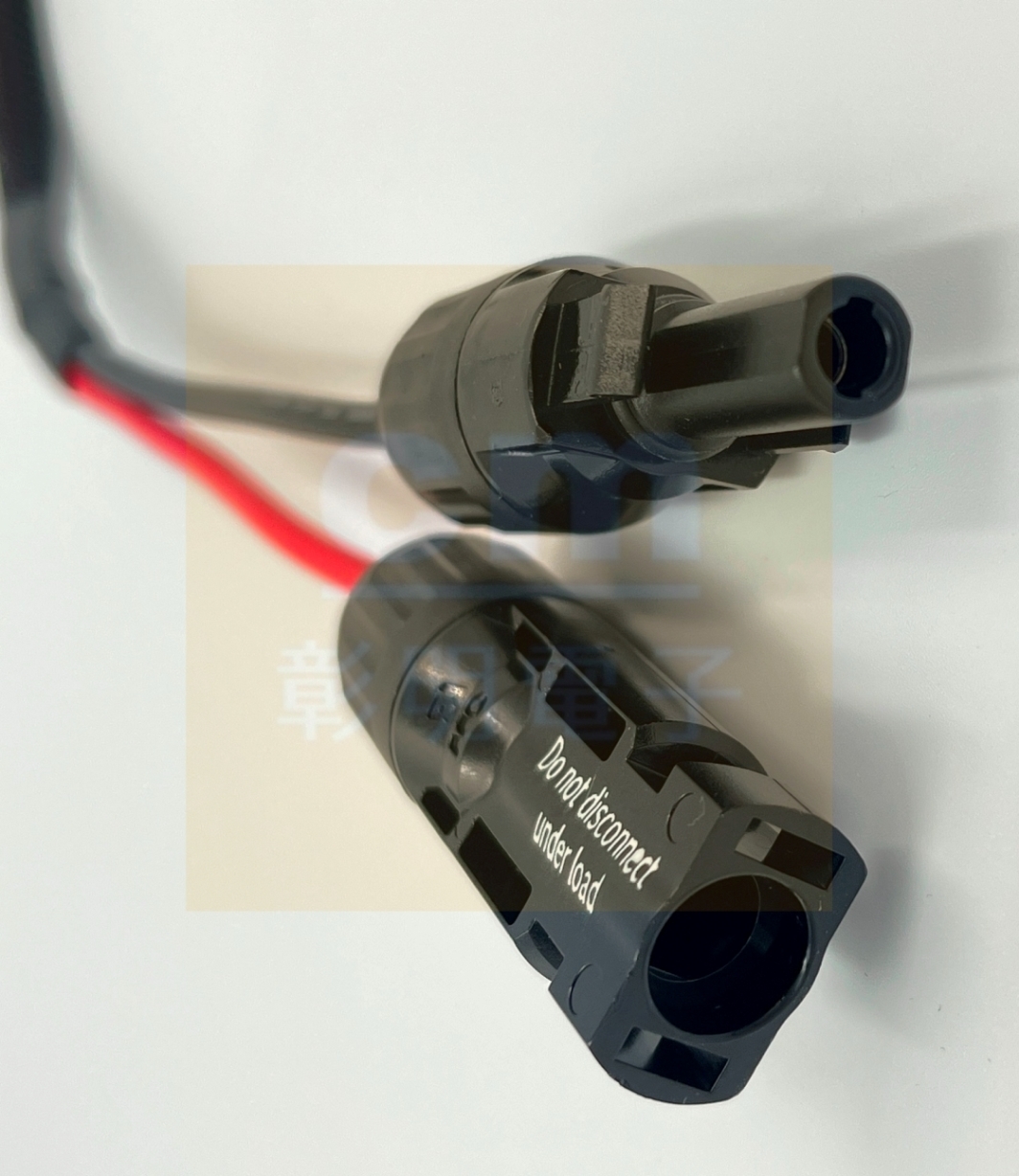

The connector, compatible with MC4 connectors, is a specialized joint used for connecting solar photovoltaic panels in parallel to form an array module. It features fast and reliable connections, as well as waterproof and dustproof capabilities, and easy usability. The casing has strong anti-aging and UV resistance properties, and the cable connections are made using a crimping and clamping method. The male and female heads of the connector have a stable self-locking mechanism and can be easily opened and closed.

Photovoltaic connectors are the most commonly used specialized connectors in solar photovoltaic power generation systems.
The connector (compatible with MC4 connectors) is a specialized joint for solar photovoltaic panels, with features such as fast and reliable connections, waterproof and dustproof capabilities, and easy usability.
The casing has strong anti-aging and UV resistance properties.
The cable connections are made using a crimping and clamping method, and the male and female heads of the connector have a stable self-locking mechanism and can be easily opened and closed. They are essential components in the photovoltaic conversion and storage processes.
The pins and contact heads of the product are equipped with guiding insulation components to guide and prevent electric shock
Inquiry

【Introduction】

With over 25 years of expertise in wire harness manufacturing, CM LINE provides high-performance wiring solutions specifically engineered for solar photovoltaic systems. Our Solar Wire Harnesses are fully compatible with industry-standard MC4 connectors, serving as critical components for connecting PV panels in parallel to form array modules. From photovoltaic conversion to energy storage, we ensure that every connection meets the highest standards of safety and efficiency.

【Key Features】

  • High Compatibility & Ease of Use: Fully compatible with industry-standard MC4 connectors. Features a robust self-locking mechanism for easy plug-and-play operation and stable connectivity.
  • Extreme Weather Resistance: The casing is constructed from high-efficiency anti-aging and UV-resistant materials, making it ideal for long-term use in harsh outdoor environments.
  • Superior Protection Rating: Exceptional waterproof and dustproof performance ensures reliable operation even under heavy rain or sandy conditions.
  • Electric Shock Protection: Connectors are equipped with specialized insulating guiding components to prevent electric shock during operation, ensuring the safety of field engineers.
  • Precision Crimping Process: Cables and connectors are joined using professional crimping and clamping methods, ensuring low electrical resistance and high conductivity.

【Applications】

CM LINE’s solar wire harnesses are widely utilized in:

  • Photovoltaic (PV) Arrays: Parallel connection of multiple solar panels to form high-power array modules.
  • Energy Storage Systems (ESS): Linking battery storage units with inverters for efficient power management.
  • Industrial Automation & Aerospace: Outdoor power lines requiring extreme weather and UV resistance.
  • Commercial & Residential Rooftop Solar: Providing long-lasting, maintenance-free power connection solutions.

【Our Advantages】

  • UL & ISO Certified Quality: We achieved UL Certification (File No. E318480) in 2008 and hold the ISO 9001:2015 certification, ensuring our quality aligns with international safety standards.
  • High Customization Capability: From delicate IC board wiring to heavy-duty industrial equipment harnesses, we offer 100% customized production based on specific requirements (length, wire gauge, and connector types).
  • Rigorous Quality Control: Driven by a spirit of continuous improvement, every process undergoes strict testing to ensure a service life of over 20 years in outdoor environments.
  • Reliable Supply Chain: With a solid manufacturing foundation, CM LINE provides competitive lead times and flexible order processing to meet global demands.

【ESG Commitment & Sustainability】

As a vital link in the energy industry supply chain, CM LINE is committed to advancing the global renewable energy transition through high-quality photovoltaic solutions. By optimizing production processes, reducing waste, and providing high-durability products, we actively minimize electronic waste. We partner with our clients to achieve environmental protection and the goal of sustainable corporate management.
