Claw Machine Harness
What Is a Claw Machine Wire Harness?

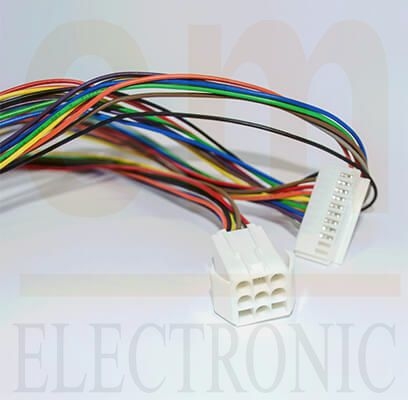

A Claw Machine Wire Harness is a wiring assembly used to connect different electrical and electronic modules inside a claw or crane game machine.
Depending on the machine design, the harness may connect the main control board, crane control system, motors, joysticks, buttons, sensors, lighting modules, and other components, providing reliable power and signal transmission throughout the machine.
Unlike a standard cable assembly, claw machine wiring often needs to be customized because internal space, PCB interfaces, control systems, and component layouts vary between different machine models.
Five Key Considerations for Custom Claw Machine Wire Harnesses
1. Custom Manufacturing Based on Your Design
Wire harnesses can be manufactured according to customer drawings, BOMs, wiring diagrams, pin assignments, or physical samples to match different claw machine configurations.
2. Flexible Wire Specifications
Cable length, wire gauge, wire color, and wire quantity can be customized according to the requirements of each circuit.
Different wire gauges and colors can also be integrated into the same harness to simplify machine assembly and maintenance.
3. Multiple Terminal and Connector Options
MOLEX, TE, JST, compatible connectors, and various terminal types can be incorporated according to customer specifications.
Terminal crimping and connector assembly allow multiple circuits to be integrated into an installation-ready wiring harness.
4. Improved Machine Assembly Efficiency
Pre-processing operations such as wire cutting, stripping, terminal crimping, pin insertion, and connector assembly reduce secondary wiring work on the customer's production line.
For mass production, this also helps maintain consistent wiring configurations between different production batches.
5. Adaptable to Different Machine Designs
PCB interfaces, control systems, internal layouts, and machine functions can vary significantly between claw machine models.
Harness length, branches, terminal types, and connector positions can therefore be customized according to the actual equipment design rather than being limited to a fixed standard configuration.
Applications
Claw Machine Wire Harnesses can be used for:
- Claw Machines
- Crane Game Machines
- Crane Control Mechanisms
- Main Control Boards and I/O Modules
- Motors and Drive Modules
- Joysticks and Control Buttons
- Sensors and Limit Switches
- LED Lighting Modules
- Other Internal Arcade Machine Wiring
Wire Harness Manufacturing and Quality Control
Although a claw machine wire harness may appear to consist simply of wires, terminals, and connectors, every circuit must be connected to the correct position.
According to customer specifications, the manufacturing process can include wire cutting, stripping, terminal crimping, connector assembly, and circuit configuration. Continuity inspection can then be performed to verify the electrical connection of each circuit.
For projects requiring long-term production, a controlled wire harness manufacturing process helps reduce incorrect connections, missing circuits, and unnecessary rework during final machine assembly.
Internal wiring requirements vary according to the control board, mechanical structure, and functions of each claw machine. For this reason, the most suitable wire harness is usually manufactured around the actual machine design.
Chan Ming Electronic provides custom wire processing and wire harness assembly services based on customer-provided drawings, BOMs, wiring diagrams, pin assignments, and samples, covering wire preparation, terminal crimping, connector assembly, and complete harness manufacturing.
If you are looking for a manufacturing partner for claw machine wire harnesses, arcade machine wiring, or other custom cable assemblies, send us your drawing or sample to discuss your project.
